Lesson 6: Plant the Queue Automatically

The library holds what a species is, the queue holds how many you want, and the guided planter puts the list in the ground one reasoned suggestion at a time.

GardenCAD
Lesson 06
Self-paced Lesson 06 of 08
Plan a Garden with GardenCAD

Plant the queue automatically

A catalogue, a shopping list, and a planter that argues its case before it plants anything.

Lesson
06 of 08
Lesson 06 · Plant the queue
Learning objectives
GardenCAD
02 · 07
By the end of this lesson

You will be able to do three things.

01
Distinguish
The plant library from the plant queue: a catalogue of species against a target for this garden.
02
Build
A queue with real quantities, and read each row's placed-against-planned progress.
03
Run
A guided planting session: select beds, read the reasons, accept or skip, auto-fill, finish.
Lesson 06 · Plant the queue
The two panels
GardenCAD
03 · 07
Concept · catalogue vs target
Library or queue
One says what a plant is; the other says how many you want
Definition
The library is the species catalogue - spacing, mature size, sun, water, days to maturity - and picking from it sets the active species. The queue is a list of species and quantities for this garden, and each row reports what is planted against what was planned.
In the room
Queue twelve lettuces, plant three by hand, and the row reads 3 / 12. Raise the row to fifteen and the planter has twelve left to place. The number is the garden you want, not the work outstanding. - Why a queue row counts placed against planned
Lesson 06 · Plant the queue
The guided planter
GardenCAD
04 · 07
Control · one plant at a time
Guided plant
Select beds, and the planter proposes the next plant and the next spot, with the reasons for both, until the queue runs out or the ground does.
01
Every proposal carries its reasons. Sun match, water clustering, and where a tall plant's own shadow falls are all in there as pluses and minuses.
02
Accept, Skip, and Undo are all reversible. Auto-fill just repeats Accept until nothing more fits.
03
Nothing is planted until Finish. Cancel discards the session whole and leaves the garden exactly as it was.
Lesson 06 · Plant the queue
From a list to planted ground
GardenCAD
05 · 07
Procedure · 5 steps

Planting a whole list at once

01
of 05
Pick
Choose from the library
Read the card, not the name. Spacing and mature size decide how many of a species your ground can carry.
Checkpoint · Species active
02
of 05
Queue
Say how many you want
Add each species to the queue and set the quantity for the finished garden, not for the work left over.
Checkpoint · Queue has rows
03
of 05
Select
Give it some ground
Click a bed, shift-click for more. The button names how many beds it is about to plant into.
Checkpoint · Beds selected
04
of 05
Guide
Accept, skip, auto-fill
Read the reasons on each proposal. Accept, Skip, or Undo; Auto-fill repeats the best pick until nothing more fits.
Checkpoint · Proposals settled
05
of 05
Finish
Commit the session
Finish plants everything you accepted. Cancel or closing the panel discards the lot and changes nothing.
Checkpoint · Queue rows advance
Lesson 06 · Plant the queue
Four traps
GardenCAD
06 · 07
Common mistakes · 4 of them

What goes wrong, and what to do instead

What goes wrong
What to do instead
01 · Lost work Accepting a dozen proposals, closing the panel, and finding nothing planted.
Instead Press Finish. Until you do, the accepted plants are ghosts; Cancel and closing both discard them on purpose.
02 · Stuck queue Auto-filling repeatedly and watching a row stay at 8 of 40.
Instead The selected ground cannot hold more at that spacing. Add beds, widen the selection, or lower the quantity.
03 · Bad picks Skipping proposal after proposal because none of them look sensible.
Instead Read the minus reasons. If they all name the same problem, the species is wrong for that bed, not the placement.
04 · Empty bed A bed left bare after a long session that seemed to go fine.
Instead The planter only touches selected beds. Shift-click the ones you want before starting, or run a second session.
Lesson 06 · Plant the queue
Recap
GardenCAD
07 · 07
Recap · 3 takeaways
The lesson in three lines

What to remember

01
The library says what a species is; the queue says how many you want here. Rows count placed against planned.
Objective 01
02
Every proposal comes with its reasons. Sun, water clustering, and shadow direction are all on the table before you accept.
Objective 02
03
Finish commits; Cancel discards. A guided session cannot change the garden until you say so.
Objective 03
Read along Synthesized voice

You have now filled beds by hand, and by hand is the right way to place the few plants whose position you care about: the tomato that has to be where you can reach it, the tree you are siting for shade. It is a poor way to place forty carrots. This lesson is about the other half of the workflow, the one that starts from a list rather than from a spot. The plant library is the catalogue of what a species is. The plant queue is the list of how many of each you mean to grow. And the guided planter is the thing that reads both, looks at your beds, and proposes where each plant should go and why, one at a time, with an Accept and a Skip and an Undo. It is about fourteen minutes, and at the end of it you should be able to go from an empty planting list to a fully planted garden without placing a single plant by hand.

Read along Synthesized voice

Three objectives. First, you will be able to say what the plant library and the plant queue each hold, and why they are two things rather than one. That distinction is the whole basis for everything else in the lesson and it takes thirty seconds to explain and a while to believe. Second, you will be able to build a queue: add species to it, set quantities, and read the progress each row reports back as the garden fills. Third, you will be able to run a guided planting session end to end, which means selecting beds, reading a proposal and the reasons attached to it, accepting or skipping, auto-filling the rest, and finishing, which is the step that actually commits anything.

Read along Synthesized voice

Two panels, and people confuse them constantly, so here is the difference stated as plainly as it can be. The plant library is a catalogue. Every species in it carries real numbers: a spacing, a mature radius and height, a sun requirement, a water requirement, days to maturity, and a set of interactions with animals and pests. Those numbers are facts about the plant and they do not change because of your garden. Picking one in the library makes it the active species, which is what the by-hand tools inherit. The plant queue is not a catalogue, it is a target. A row in it says: I want twelve lettuces in this garden. And the number it shows you is placed against planned, three of twelve, because a queue quantity counts what is in the ground, not what is left to do. That is worth saying twice, because it changes what happens when you edit a row. If five tomatoes are already planted and you set the row to six, the planter has one to place, not six. The queue is a statement about the finished garden.

Read along Synthesized voice

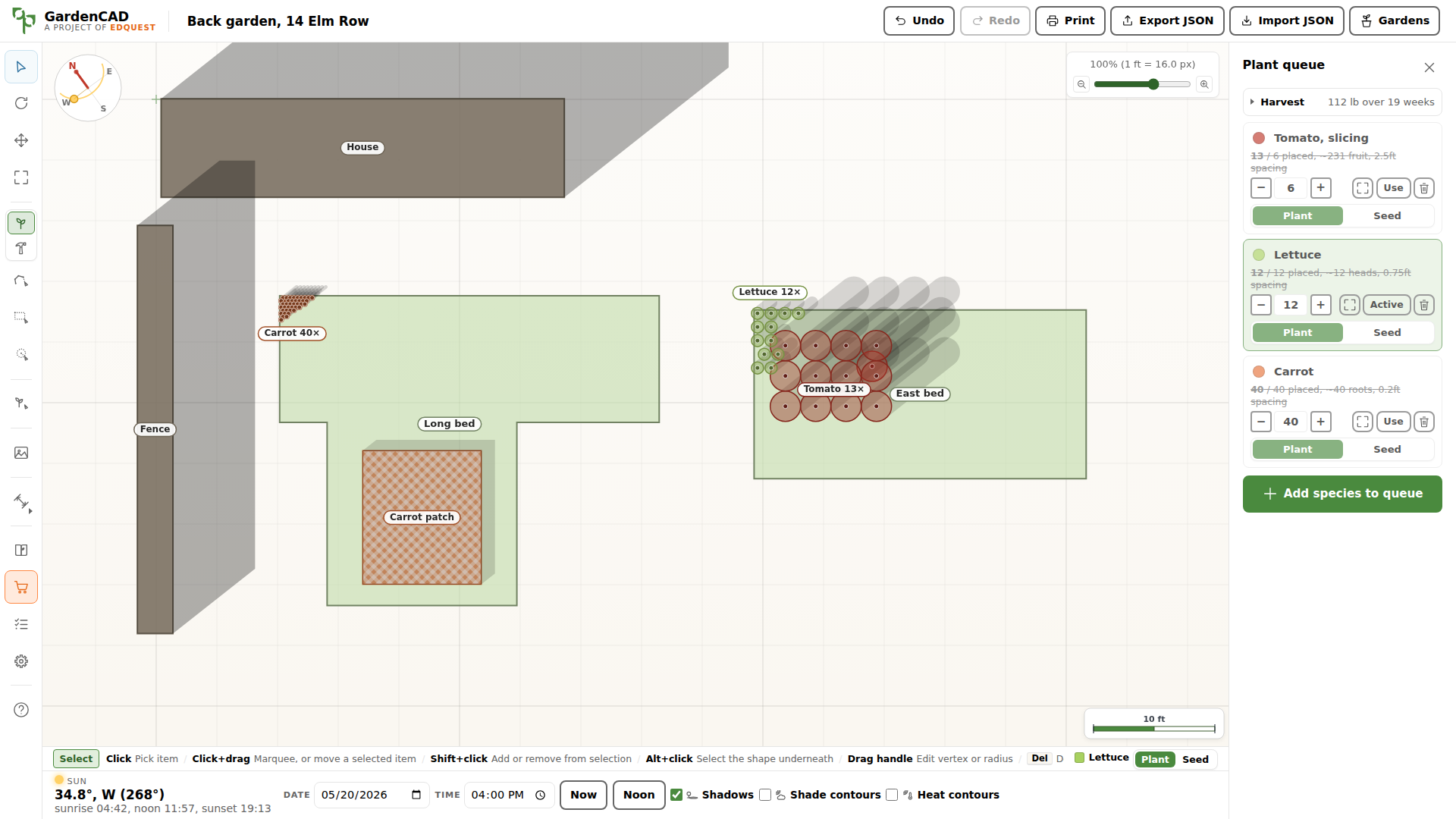

This is a guided planting session running. Select one or more beds on the canvas, press Guided plant, and the planter starts proposing. Each proposal is one plant of one species in one spot, drawn as a ghost on the canvas so you can see where it would land, and it comes with its reasons: a short list of pluses and minuses saying why here rather than somewhere else. Sun hours matching the species' requirement. Water need clustered with its neighbours so you are not running a hose to one thirsty plant in a dry bed. Tall plants placed where their own shadow falls out of the garden rather than across the bed behind them. You can Accept it, Skip to the next idea, or Undo the last one you took. When you are convinced, Auto-fill takes the best pick over and over until nothing more fits. And then Finish, which is the one that matters: until you press Finish nothing has actually been planted. The ghosts are a proposal, not a commitment, and Cancel throws the whole session away without touching the garden.

Read along Synthesized voice

Five steps. First, pick: open the plant library and choose your species, reading the numbers on the card rather than the name, because spacing and mature size are what decide how many of them your ground can hold. Second, queue: add each one to the plant queue and set the quantity you actually want in the finished garden. Third, select: click a bed on the canvas, and shift-click to add more. The planter only works on ground you have selected, and the button tells you how many beds it is about to work on. Fourth, guide: press Guided plant and work through the proposals. Accept the ones you like, skip the ones you do not, and when you are satisfied it is behaving sensibly, Auto-fill the rest. Fifth, finish, and this is the step people miss: Finish commits everything you accepted. Closing the panel or pressing Cancel throws the session away, and the queue rows will still read zero placed.

Read along Synthesized voice

Four things that go wrong. The first is pressing Cancel, or just closing the panel, at the end of a session and wondering where the plants went. Nothing is committed until Finish, and that is deliberate, because a proposal you have not looked at should not be able to change your garden. The second is a queue that never empties. If a row will not go down, the ground you selected genuinely cannot hold any more of that species at its spacing, and the honest answers are more beds, wider spacing, or fewer plants, not more clicking. The third is proposals that all look wrong, which usually means the species is wrong for the site rather than that the planter is confused: read the minus reasons, and if they all say the same thing about sun, the bed is the problem. And the fourth is expecting the planter to fill ground it was not given. It works on selected beds only, so a bed you forgot to select stays empty however long you auto-fill.

Read along Synthesized voice

Three things. The library and the queue are different objects: one is a catalogue of what a species is, the other is a target for how many you want here, and the queue counts placed against planned rather than work outstanding. The guided planter reasons out loud, and the reasons are the point: it is not placing plants at random and hoping, it is matching sun to requirement, clustering water needs, and keeping tall plants' shadows off the beds behind them, and it will tell you which of those it is doing at every step. And nothing is planted until Finish, which is what makes the whole session safe to experiment in. You now have a garden planted from a list. The next lesson goes back to the sun, and asks whether the light your beds actually get matches what everything you have just planted needs.

Download MP4 5m 35s, 5.7 MB Watch offline. Audio is embedded; one keyframe per slide so seeking jumps cleanly.
